Introduction｜

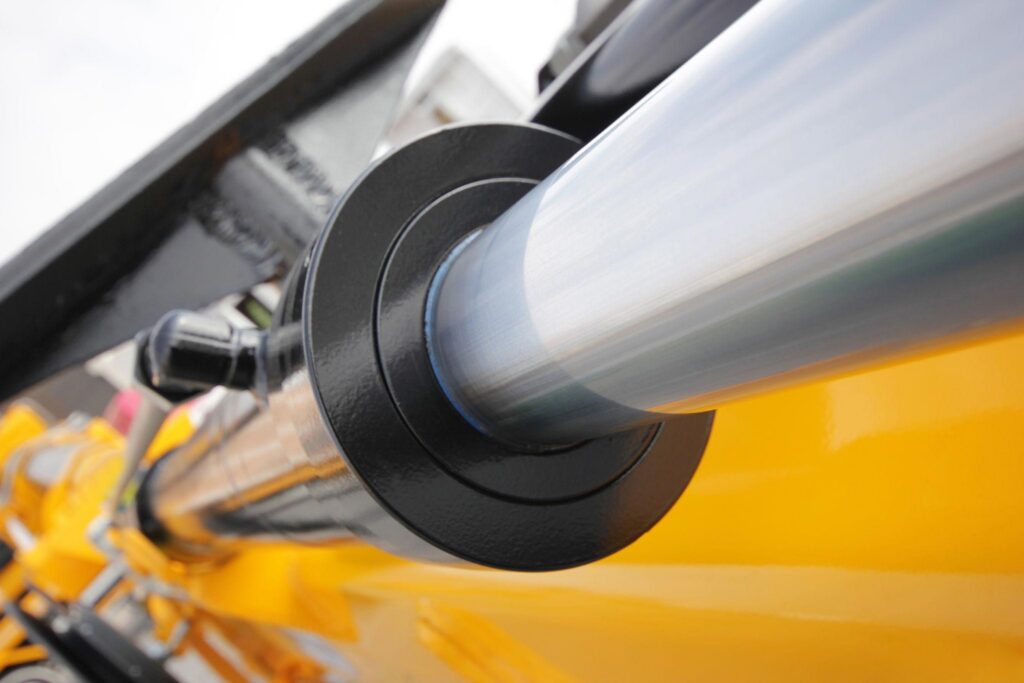

In hydraulic cylinder design, choosing between solid chrome plated rod and hollow chrome rod directly affects equipment performance, service life, and operating cost.
This article gives you a clear, engineering-level comparison to help stockists, OEMs, and equipment manufacturers make the best choice.
1. Core Difference Between Solid & Hollow Rod
Solid Chrome Rod
- Full solid steel structure
- Higher rigidity & bending resistance
- Standard for most general & heavy-duty cylinders
Chrome Hollow Rod
- Hollow center, lighter weight
- Better heat dissipation & stability
- Ideal for long stroke, high speed, low-temperature conditions
2.Performance Comparison (Key Data)
| Item | Solid Chrome Rod | Hollow Chrome Rod |
| Weight | Heavier | Lighter (15–40% lighter) |
| Bending Resistance | Stronger | Good (with sufficient wall thickness) |
| Heat Dissipation | Normal | Excellent |
| Low-Temperature Stability | Good | Better (less thermal stress) |
| Suitable Stroke | Short – Medium | Medium – Long |
3. When to Use Solid Chrome Rod
- Heavy-duty, high-load working conditions
- Short or medium stroke cylinders
- Excavators, forklifts, loaders, construction machinery
- Materials: CK45, 42CrMo, 20MnV6
4. When to Use Chrome Hollow Rod
- Long-stroke hydraulic cylinders
- High-speed reciprocating motion
- Low-temperature environments (–20°C to –40°C)
- Lightweight & energy-saving equipment
- Sanitation trucks, aerial platforms, telescopic cylinders, wind power systems
- Best material: 20MnV6 (high toughness + low temp resistance)
5. Key Quality Standards You Must Verify
- OD Tolerance: ISO f7

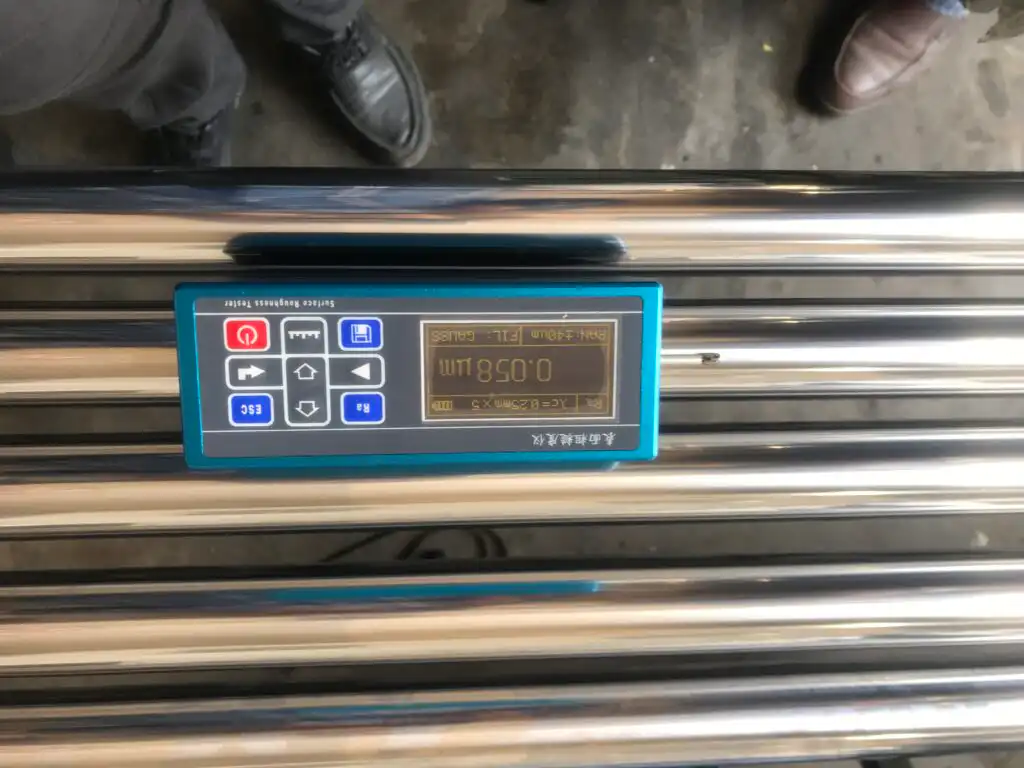

- Surface Roughness: Ra ≤ 0.2 μm
- Chrome Thickness: 25 μm ±5 μm
- Surface Hardness: HV800 min.
- Straightness: 0.2–0.5 mm/m
- Materials: CK45, 20MnV6, 42CrMo
6. Material Recommendation by EAST AI
For normal conditions: CK45
For low-temperature & long life: 20MnV6
For ultra-high pressure & heavy duty: 42CrMo
7. Why Choose EAST AI Chrome Rods?
We stick to our promise: Batch-to-Batch Consistency, Piece-by-Piece Perfection
- Tier-1 steel mill raw materials (stable composition)
- Full-process inspection in every production step
- 100% full inspection before shipment
- Precision: ISO f7, Ra0.2, stable tolerance
- Materials including 20MnV6 for low-temperature use
- Complete MTC & test reports
Conclusion｜
Choose solid chrome rod for heavy-duty, short-stroke cylinders.
Choose hollow chrome rod for long-stroke, high-speed, low-temperature systems.
For best low-temperature performance, use 20MnV6.
