The Dimensions Were Within Specification. Why Did Production Problems Still Occur?

A hydraulic cylinder manufacturer received feedback from its production department.The purchased tubes met the basic dimensional requirements.The outside diameter was acceptable.The material specification was correct.The inspection report showed that the products were within the agreed tolerance range.However, during cylinder assembly, technicians noticed unexpected differences between different batches.Some cylinders assembled smoothly.

Others required additional adjustments before reaching the expected performance.The engineering team reviewed the complete manufacturing process and found that the issue was related to tolerance consistency.Although individual measurements were acceptable, the variation between different tubes affected assembly stability and final cylinder performance.This situation reveals an important engineering principle:A hydraulic cylinder does not only require components that meet specifications. It requires components that maintain stable specifications from piece to piece.

What Does Honed Tube Tolerance Mean?

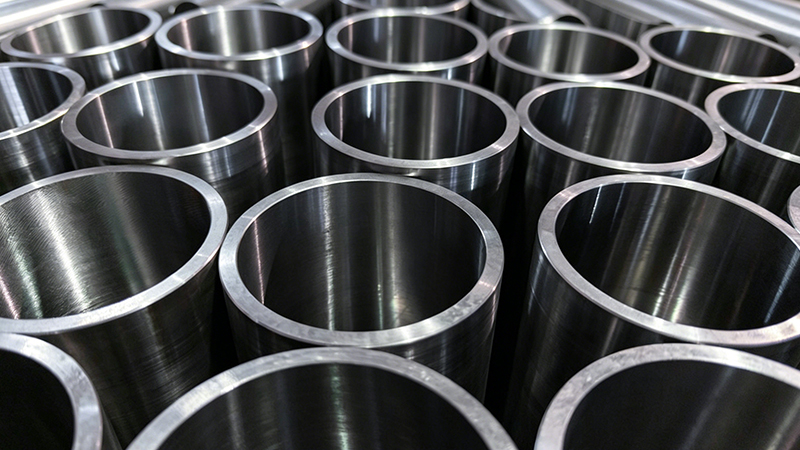

In hydraulic cylinder manufacturing, tolerance refers to the acceptable variation range of a component dimension.For a Honed Tube, tolerance control involves more than simply checking the bore diameter.It represents the overall ability of the tube to maintain consistent geometry and performance characteristics during production.

Important tolerance factors include bore size accuracy, dimensional stability, wall thickness consistency, and compatibility with piston and sealing systems.For hydraulic cylinder manufacturers, tolerance control directly affects assembly efficiency and product reliability.A tube that is slightly different from another tube may not create an obvious problem during inspection, but it can influence the final cylinder performance when thousands of units are produced.Precision manufacturing is not only about achieving a target value. It is about controlling variation around that value.

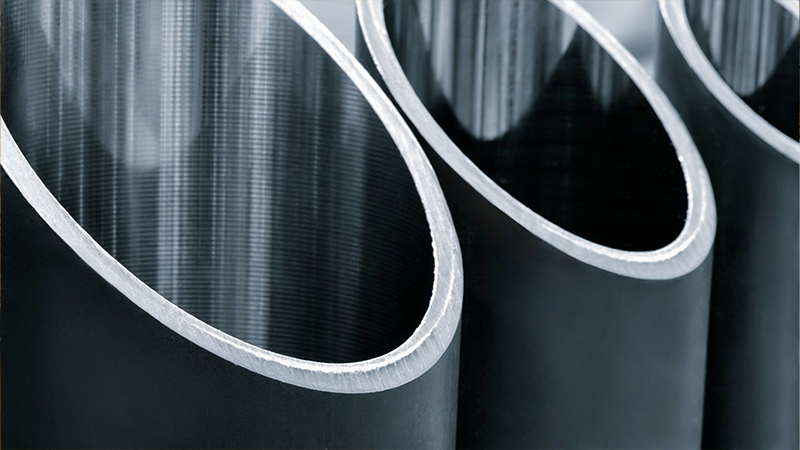

Why Bore Tolerance Directly Affects Hydraulic Cylinder Performance

The internal bore of a hydraulic cylinder is the working surface where the piston and seal assembly operate.The relationship between the bore and sealing system must remain highly controlled.If bore tolerance is inconsistent, several issues may appear.A larger variation may change seal compression.A smaller variation may increase friction.An unstable bore condition may influence piston movement.

These effects may lead to:reduced efficiency, uneven wear, leakage risk, and shorter service intervals.The hydraulic cylinder may still function, but its long-term reliability can be affected.The purpose of tolerance control is not only to make a component fit. It is to ensure predictable performance throughout the product lifecycle.

How Poor Tolerance Control Creates Problems for OEM Manufacturers

OEM hydraulic cylinder manufacturers require repeatable production results.When components are inconsistent, production teams may face additional challenges.During assembly, operators may need to make extra adjustments.During testing, performance differences may appear between units.During field operation, customers may experience different service life from seemingly identical equipment.

These problems increase hidden costs:additional inspection, production delays, maintenance requirements, and customer complaints.A reliable component supplier helps reduce these uncertainties by maintaining stable manufacturing control.For OEM production, consistency is often more valuable than a single high-quality sample.

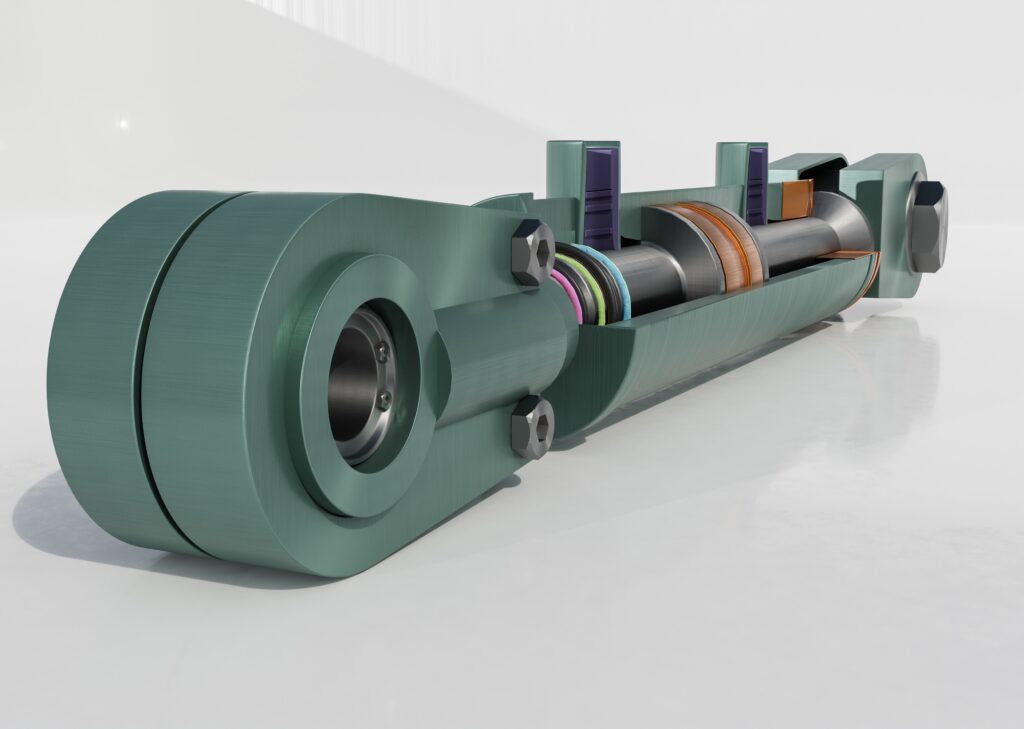

Tolerance Control and Hydraulic Cylinder Seal Performance

Seals are designed according to specific working conditions.Their performance depends on the relationship between:the seal material, hydraulic pressure, lubrication condition, and surrounding component accuracy.

The Honed Tube provides the internal environment where the seal operates.If tolerance control is unstable, the seal may experience changing conditions during operation.

This can affect:contact pressure, friction behavior, and wear distribution.Over time, these small differences can influence the service life of the entire hydraulic cylinder.A reliable seal system begins with accurately controlled components around it.

Why Professional Buyers Look Beyond Basic Specifications

When purchasing Honed Tubes, many buyers initially focus on:material grade, price, delivery time, and standard dimensions.These factors are important.

However, experienced hydraulic manufacturers also evaluate manufacturing consistency.They want to understand:How stable is the production process?Can the supplier maintain the same quality across repeated orders?Are inspection methods reliable?Can the supplier support long-term OEM requirements?

A supplier that controls variation effectively can provide more predictable results.The difference between an ordinary supplier and a professional supplier is often the ability to control details consistently.

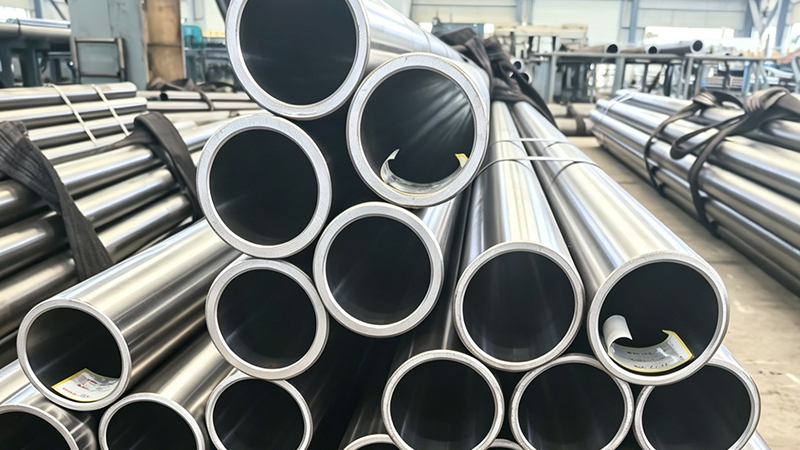

How Manufacturers Achieve Stable Honed Tube Tolerance

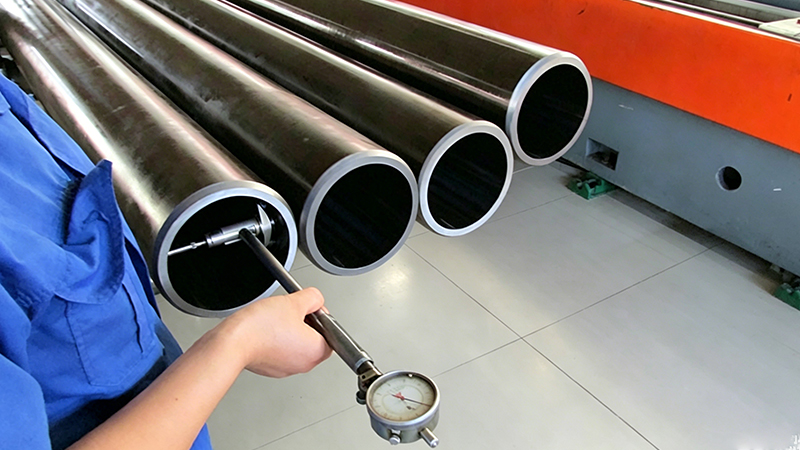

Stable tolerance control requires a complete manufacturing system.It starts with suitable raw material selection and continues through tube preparation, machining, honing, and final inspection.During production, manufacturers monitor dimensional accuracy and process stability to ensure that each batch remains within customer requirements.

Final inspection provides verification, but the real quality comes from controlling the process that creates the product.For OEM customers, this means fewer unexpected adjustments and more reliable production planning.Quality is created during manufacturing, not added during inspection.

Common Mistakes When Selecting Honed Tube Suppliers

Some purchasing decisions focus only on whether a supplier can provide the requested size.However, hydraulic cylinder applications require more than dimensional availability.Common mistakes include selecting suppliers only based on price, ignoring tolerance consistency,comparing suppliers only by specifications, and failing to evaluate production capability.Two suppliers may provide tubes with the same nominal dimensions, but the final performance can differ significantly because of manufacturing control.The real value of a Honed Tube supplier is the ability to provide stable quality over time.

Related Reading

• How Honed Tubes Are Manufactured: From Steel Tube to Precision Hydraulic Component
• Why Honed Tube Roundness Is Critical for Hydraulic Cylinder Reliability
• How Surface Roughness Affects Hydraulic Cylinder Seal Performance

Frequently Asked Questions

What is Honed Tube tolerance?

Honed Tube tolerance refers to the acceptable variation range of the tube dimensions and geometric characteristics required for hydraulic cylinder applications.

Why is bore tolerance important in hydraulic cylinders?

Bore tolerance affects piston movement, seal compression, friction behavior, and overall cylinder reliability.

Can a tube with correct dimensions still cause hydraulic cylinder problems?

Yes. A tube may meet basic dimensional requirements but still create issues if consistency, geometry, or process stability is insufficient.

What tolerance factors should buyers consider for Honed Tubes?

Buyers should evaluate bore accuracy, dimensional consistency, surface quality, and supplier manufacturing capability.

Why is batch consistency important for OEM customers?

OEM manufacturers require repeated production with predictable performance. Stable batches reduce assembly problems and quality risks.

How can I evaluate a Honed Tube supplier?

Evaluate material control, manufacturing process, inspection capability, technical support, and the supplier’s ability to maintain consistent quality.

Who Should Read This Article?

This article is useful for:

• Hydraulic cylinder manufacturers
• OEM equipment builders
• Mechanical engineers
• Purchasing managers
• Quality engineers
• Hydraulic component distributors

Need Technical Support?

Selecting the right Honed Tube requires more than checking dimensions and material grades.Tolerance control, manufacturing stability, surface quality, and inspection capability all influence hydraulic cylinder reliability.

At EAST AI, we manufacture Honed Tubes and Chrome Plated Rods for hydraulic cylinder applications, focusing on controlled processes, consistent quality, and reliable OEM supply.Stable components create stable hydraulic performance.
